X24-SAe Wireless ATEX/IECEx Strain Gauge Transmitter OEM Module

The X24-SAe ATEX / IECEx telemetry transmitter module measures strain input and periodically transmits data for receipt by X24 or T24 receivers to provide  a quick route to the manufacture and supply of approved strain bridge sensor products. This intrinsically safe board is approved for Zone 1 and 2 explosive atmospheres and has been designed to fit into most load cells, with the efficient omnidirectional antenna removing the requirement for an external enclosure antenna.

High accuracy ratio-metric input allows for calibration and linearisation for pressure, force and weight measurement in explosive atmospheres. The X24-SAe provides 5V excitation to drive transducer loads down to 85 ohms. This transmitter is highly accurate, low noise and uses up to nine point linearisation, giving quality measurements from a wide range of strain bridge transducers.

The OEM product X24-SAe has component approvals which allow holders of a QAN or a QAR to “fast track” the design and manufacture of their own ATEX/IECEx products through the equipment certification process. using a notified body.

The licence-free 2.4GHz radio signal provides a line-of-sight communication range of up to 800 metres (2600 feet), approved for FCC, IC and European use. The flexible transmission rates and low power usage allows for long battery/cell life, and the use of the latest DSSS radio technology minimises local radio interference and ensures data integrity and security.



atex statement exi

  • High performance PCB for OEM integration
  • Long battery life of up to 5 years
  • High quality measurements
  • Calibration and linearisation to engineering units
  • Operates with X24 and T24 receivers
  • Worldwide licence exempt 2.4GHz radio
  • Up to 800 metre (2600 feet) range maximum
  • Approved for use in explosive atmospheres, Zones 1 & 2

X24-SAe Wireless Strain Gauge Transmitter OEM Module specifications

atex statement exi

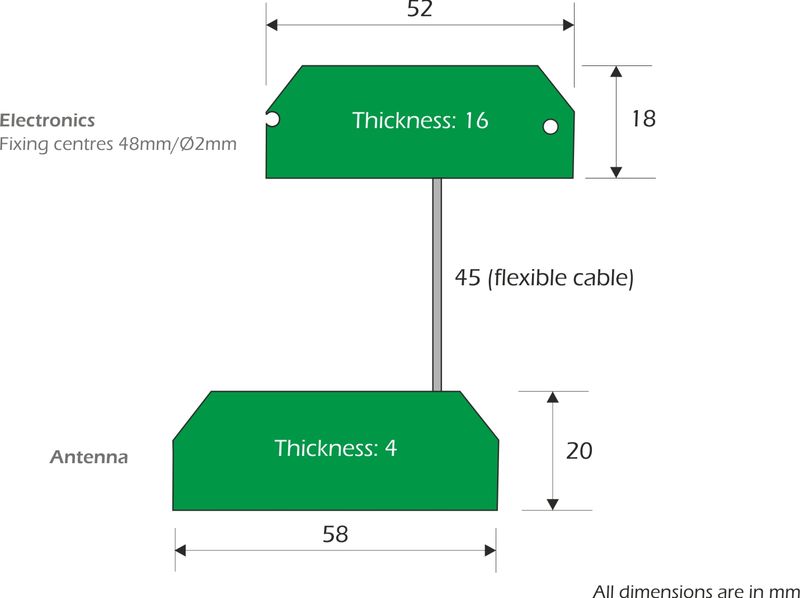

X24-SAe Wireless Strain Gauge Transmitter OEM Module dimensions

No options available for this product

  • Wireless load cells
  • Hoist load monitoring
  • Cable tension measurement
  • Crane safe load monitoring
