TLL Stainless Steel Cabled Load Link

The LCM series of load links have been designed for lifting and weighing in rugged or harsh environments, being manufactured entirely from Stainless Steel. The TLL load links are simple to install and are matched to standard shackle sizes. They are normally supplied with a MIL specification plug and socket; the whole package is environmentally sealed to IP66.

The TLL load link series can be supplied as shown in this datasheet or can be modified to meet a particular application requirement. We are always pleased to discuss any special requirements that can be accommodated.



atex statement exd and exi

  • 5te to 100te
  • Amplified output version available
  • Environmentally sealed to IP67
  • Higher Range versions available
  • Stainless steel construction

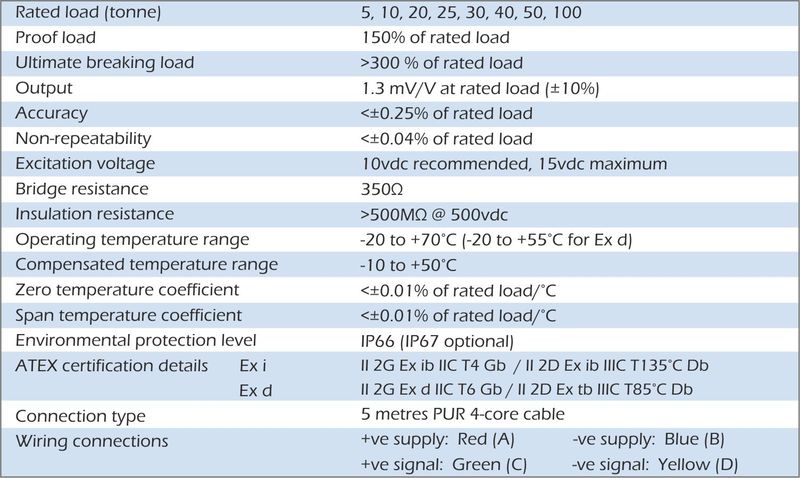

tll load link specification

atex statement exd and exi

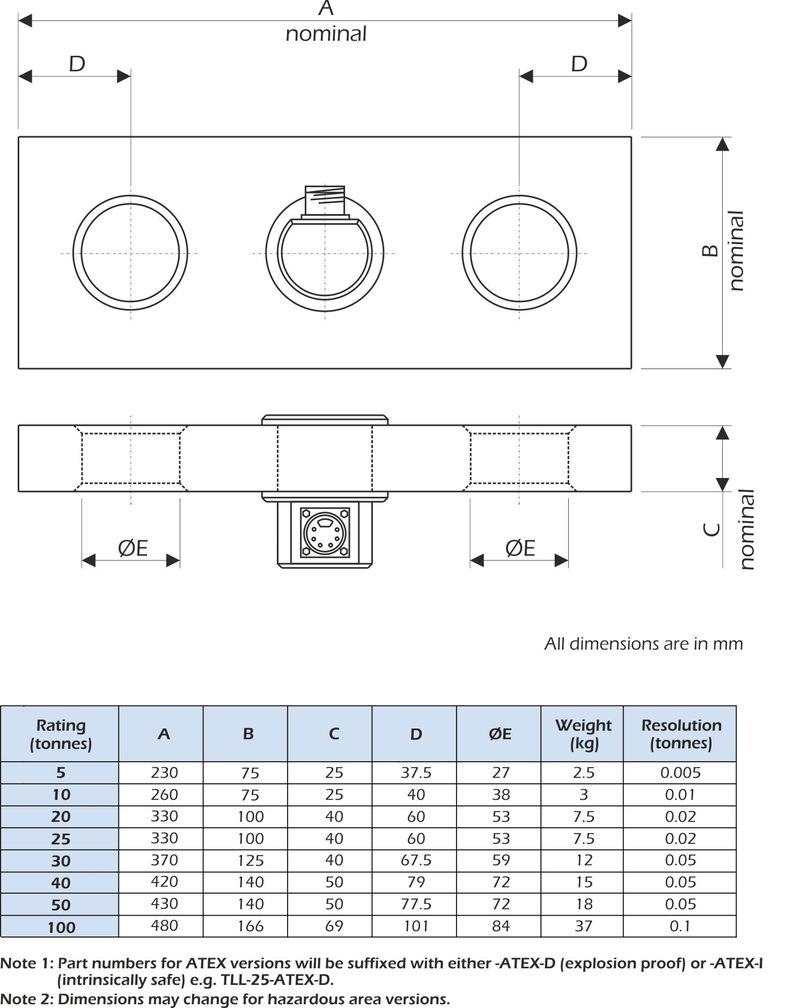

tll load link dimensions

  • Special ranges and sizes available
  • Can be supplied complete with shackles
  • Can be supplied with integral signal conditioning
  • Optional complete carry kit, including load cell indicator
  • Special electrical connections
  • TEDS option (when used with TR150 handheld display)
  • ATEX version available
  • Cable Tension Monitoring
  • Under-hook Hoist and Crane Weighing
  • Towing/Mooring Tension
  • Crane Safe Load Monitoring
