TELSHACK-B-HL Wireless Bow Type Heavy Lift Load Shackle

The TELSHACK-B-HL range of telemetry load shackles are manufactured using the GN Rope H10 shackle (120te version can be manufactured using either the H10 or smaller H10S shackle. Suitable for use in a wide range of industrial and marine heavy lift weighing applications, these load shackles provide a robust and effective method of measuring large tensile loads. They are also particularly suited to offshore applications, as they include 3.1 material certification as standard and the proof load test and calibration can be witnessed by a 3rd party at LCM Systems.

The unique telemetry housing is manufactured from tough high performance polyamide resin making it strong yet light, resulting in a better balanced load shackle when compared to others available on the market. Two clips enable you to open the housing to access and change the two AAA alkaline batteries, while the internal electronics underneath remain completely sealed. This includes the antenna to ensure maximum protection from damage. The built in radio telemetry electronics operates on the 2.4GHz license free frequency.

The TELSHACK-B-HL is supplied as standard without any additional wireless devices to enable greater flexibility with the configuration and ordering of the product. The TELSHACK-B-HL can be used with any of the T24 range of wireless instrumentation, whether this be for a simple display system using the T24-HS-LS, or more complex systems using multiple load cells and multiple wireless devices.

For more sophisticated systems, including datalogging or monitoring/reporting requirements, we are able to offer a robust tablet PC with installed software for use with single or multiple load cell installations. Our sales team will be happy to discuss the best wireless system configuration to suit your requirements.

The TELSHACK-B-HL series can be provided as shown in this datasheet or can be modified to meet a particular application requirement. We are always pleased to discuss any special requirements that can be accommodated.



atex statement exi

  • Continuous use battery life of 300 hours (with 1.2Ah batteries)
  • Environmentally sealed to IP67
  • From 120 tonnes to 1000 tonnes
  • GN Rope shackles
  • High tensile carbon steel construction
  • Optional load centralising bobbin
  • Shackle and load pin fully certified
  • Simple installation and operation
  • Transmission range of up to 600 metres clear line of sight
  • Wireless heavy lift shackle

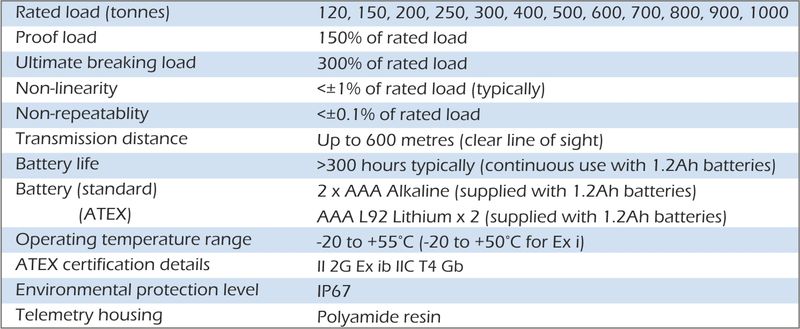

telshack-b-hl load shackle specification

atex statement exi

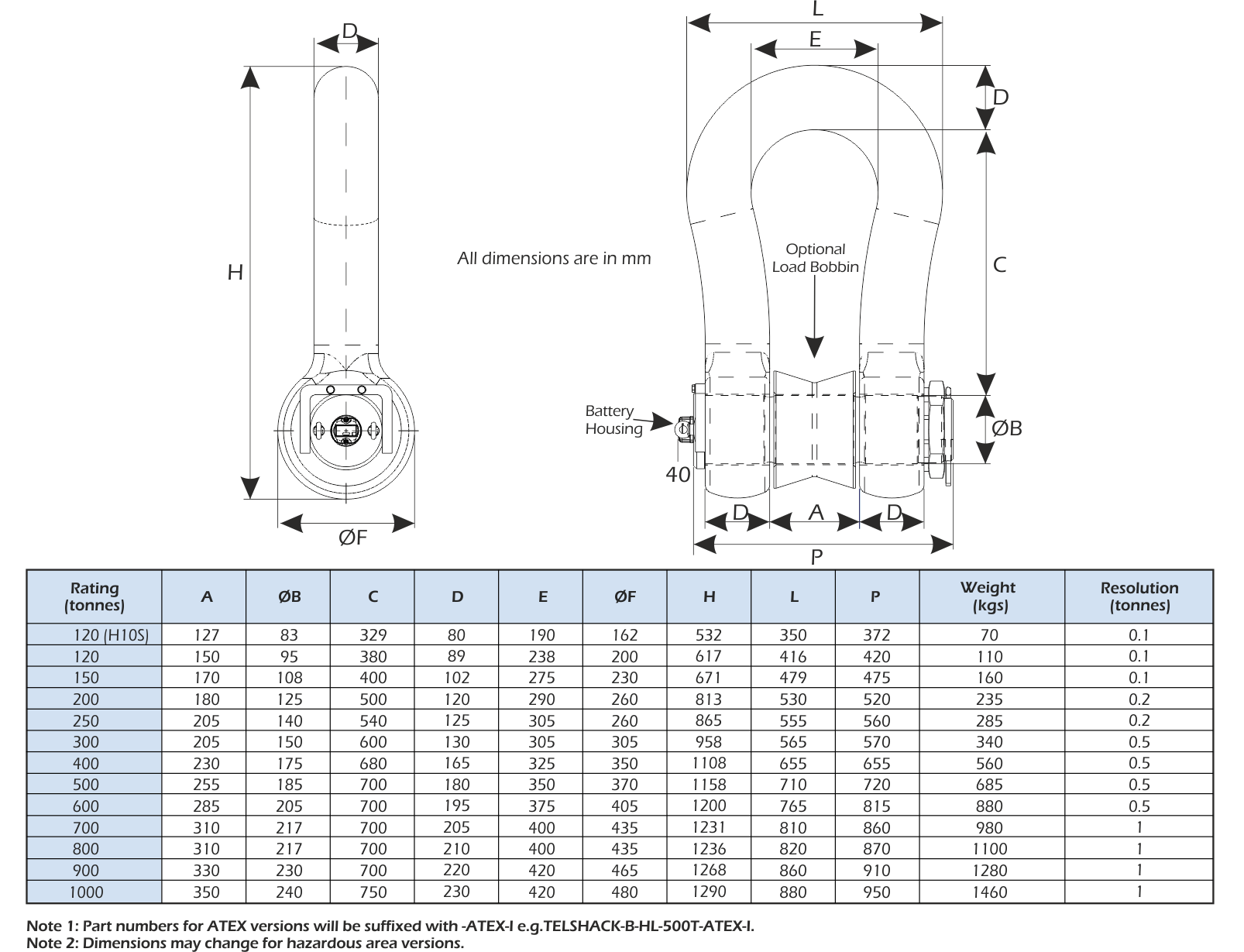

telshack-b-hl load shackle dimensions 0

  • Special ranges and capacities up to 2000te
  • Hazardous Area certified - Intrinsically Safe (Ex i)
  • Centralising load bobbin
  • Special telemetry systems available
  • Lloyds, ABS, DNV or other third party witnessing
  • Various wireless accessories available. See T24 range of wireless products
  • Towing/Mooring Tension
  • Winch Load Monitoring
  • Water Bag Testing
  • Bollard Testing
