TELSHACK-B Bow Type Wireless Load Shackle

The TELSHACK-B range of telemetry load shackles are manufactured using the Crosby™ G2130 (12 to 25 tonne) and G2140 (40 to 85 tonne) shackles. Suitable for use in a wide range of industrial and marine weighing applications, these load shackles are robust, reliable and easy to install.

The unique telemetry housing is manufactured from tough high performance polyamide resin making it strong yet light, resulting in a better balanced load shackle when compared to others available on the market. Two clips enable you to open the housing to access and change the two AAA alkaline batteries, while the internal electronics underneath remain completely sealed. This includes the antenna to ensure maximum protection from damage. The built in radio telemetry electronics operates on the 2.4GHz license free frequency.

The TELSHACK-B is supplied as standard without any additional wireless devices to enable greater flexibility with the configuration and ordering of the product. The TELSHACK-B can be used with any of the T24 range of wireless instrumentation, whether this be for a simple display system using the T24-HS-LS, or more complex systems using multiple load cells and multiple wireless devices.

For more sophisticated systems, including datalogging or monitoring/reporting requirements, we are able to offer a robust tablet PC with installed software for use with single or multiple load cell installations. Our sales team will be happy to discuss the best wireless system configuration to suit your requirements.

The TELSHACK-B series can be provided as shown in this datasheet or can be modified to meet a particular application requirement. We are always pleased to discuss any special requirements that can be accommodated.

atex statement exi




  • Continuous use battery life of 300 hours (with 1.2Ah batteries)
  • Environmentally sealed to IP67
  • From 12 tonnes to 85 tonnes
  • High tensile carbon steel construction
  • Many other telemetry configurations available
  • Shackle and load pin fully certified
  • Simple installation and operation
  • Transmission range of up to 600 metres clear line of sight
  • Wireless Bow type load shackle

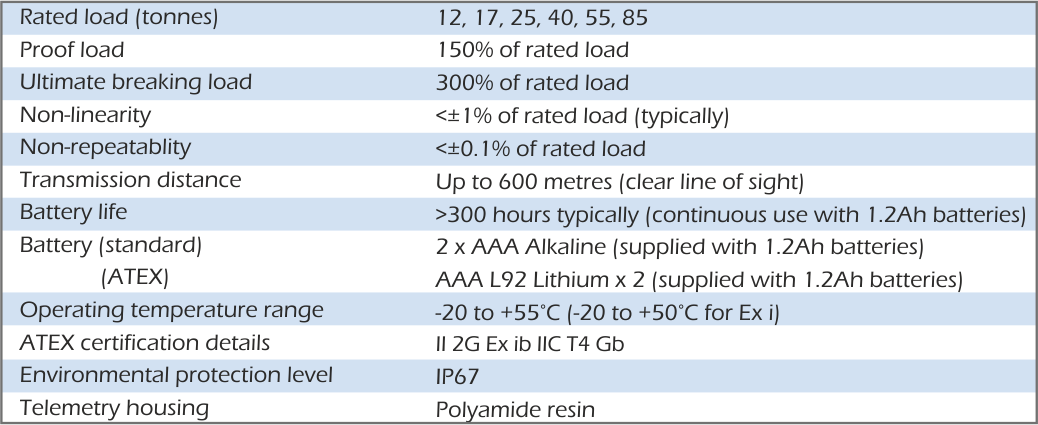

telshack-b load shackle specification

atex statement exi

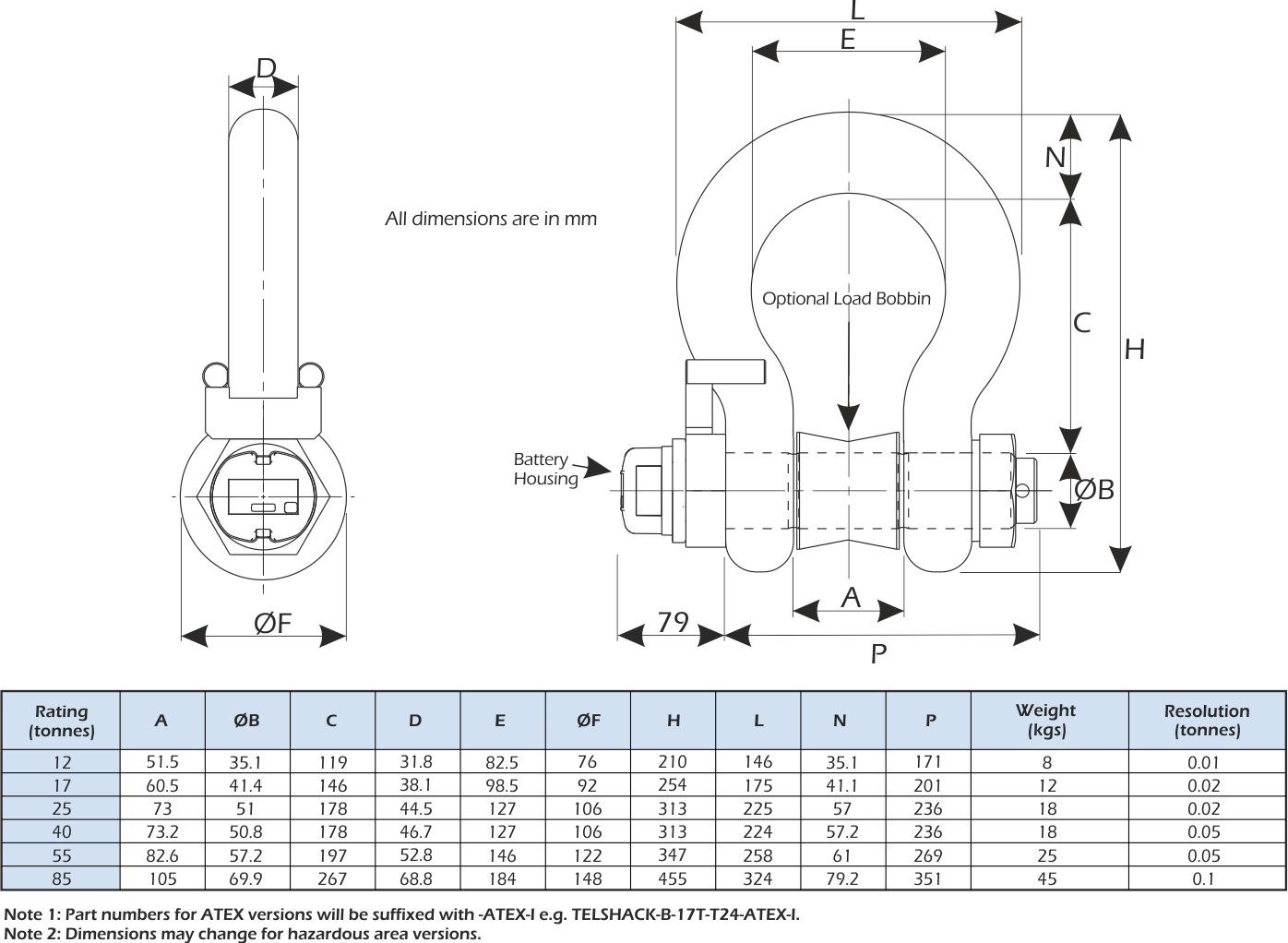

telshack-b load shackle dimensions

  • Special ranges and capacities up to 2000te
  • Hazardous Area certified - Intrinsically Safe (Ex i)
  • Centralising load bobbin
  • Special telemetry systems available
  • Lloyds, ABS, DNV or other third party witnessing
  • Various wireless accessories available. See T24 range of wireless products
  • Under-hook Hoist/Crane Weighing
  • Cable Tension Mounting
  • Towing/Mooring Tension
  • Beam Proof loading
  • Crane Safe Load Monitoring

Request a quote for TELSHACK-B Bow Type Wireless Load Shackle

DescriptionPrice Wireless DisplayStockQty
12 tonne Telshack-B (no display included)£1388.00 5 in stock
Hover over ADD TO BASKET for DELIVERY times. You can BACK ORDER this product. | YOU MAY PLACE ORDERS FOR MORE THAN WE HAVE IN STOCK.

For orders of 5 pieces or less, we will despatch within 2 working days.

For orders of more than 5 pieces we will generally despatch within 20 working days.
17 tonne Telshack-B (no display included)£1620.00 6 in stock
Hover over ADD TO BASKET for DELIVERY times. You can BACK ORDER this product. | YOU MAY PLACE ORDERS FOR MORE THAN WE HAVE IN STOCK.

For orders of 6 pieces or less, we will despatch within 2 working days.

For orders of more than 6 pieces we will generally despatch within 20 working days.
25 tonne Telshack-B (no display included)£1739.00 3 in stock
Hover over ADD TO BASKET for DELIVERY times. You can BACK ORDER this product. | YOU MAY PLACE ORDERS FOR MORE THAN WE HAVE IN STOCK.

For orders of 3 pieces or less, we will despatch within 2 working days.

For orders of more than 3 pieces we will generally despatch within 20 working days.
55 tonne Telshack-B (no display included)£2684.00 4 in stock
Hover over ADD TO BASKET for DELIVERY times. You can BACK ORDER this product. | YOU MAY PLACE ORDERS FOR MORE THAN WE HAVE IN STOCK.

For orders of 4 pieces or less, we will despatch within 2 working days.

For orders of more than 4 pieces we will generally despatch within 20 working days.
85 tonne Telshack-B (no display included)£3237.00 1 in stock
Hover over ADD TO BASKET for DELIVERY times. You can BACK ORDER this product. | YOU MAY PLACE ORDERS FOR MORE THAN WE HAVE IN STOCK.

For orders of 1 pieces or less, we will despatch within 2 working days.

For orders of more than 1 pieces we will generally despatch within 20 working days.
120 tonne Telshack-B (no display included)£4700.00 2 in stock
Hover over ADD TO BASKET for DELIVERY times. You can BACK ORDER this product. | YOU MAY PLACE ORDERS FOR MORE THAN WE HAVE IN STOCK.

For orders of 2 pieces or less, we will despatch within 2 working days.

For orders of more than 2 pieces we will generally despatch within 20 working days.
12te Load Centralising Bobbin£47.00 41 in stock
Hover over ADD TO BASKET for DELIVERY times. You can BACK ORDER this product. | YOU MAY PLACE ORDERS FOR MORE THAN WE HAVE IN STOCK.

For orders of 41 pieces or less, we will despatch within 2 working days.

For orders of more than 41 pieces we will generally despatch within 20 working days.
17te Load Centralising Bobbin£59.00 18 in stock
Hover over ADD TO BASKET for DELIVERY times. You can BACK ORDER this product. | YOU MAY PLACE ORDERS FOR MORE THAN WE HAVE IN STOCK.

For orders of 18 pieces or less, we will despatch within 2 working days.

For orders of more than 18 pieces we will generally despatch within 20 working days.
25te Load Centralising Bobbin£80.00 7 in stock
Hover over ADD TO BASKET for DELIVERY times. You can BACK ORDER this product. | YOU MAY PLACE ORDERS FOR MORE THAN WE HAVE IN STOCK.

For orders of 7 pieces or less, we will despatch within 2 working days.

For orders of more than 7 pieces we will generally despatch within 20 working days.
55te Load Centralising Bobbin£87.00 3 in stock
Hover over ADD TO BASKET for DELIVERY times. You can BACK ORDER this product. | YOU MAY PLACE ORDERS FOR MORE THAN WE HAVE IN STOCK.

For orders of 3 pieces or less, we will despatch within 2 working days.

For orders of more than 3 pieces we will generally despatch within 20 working days.
85te Load Centralising Bobbin£167.00 19 in stock
Hover over ADD TO BASKET for DELIVERY times. You can BACK ORDER this product. | YOU MAY PLACE ORDERS FOR MORE THAN WE HAVE IN STOCK.

For orders of 19 pieces or less, we will despatch within 2 working days.

For orders of more than 19 pieces we will generally despatch within 20 working days.
120te Load Centralising Bobbin£219.00 6 in stock
Hover over ADD TO BASKET for DELIVERY times. You can BACK ORDER this product. | YOU MAY PLACE ORDERS FOR MORE THAN WE HAVE IN STOCK.

For orders of 6 pieces or less, we will despatch within 2 working days.

For orders of more than 6 pieces we will generally despatch within 20 working days.
12te TELSHACK-B (external antenna)£888.00 1 in stock
| YOU MAY PLACE ORDERS FOR MORE THAN WE HAVE IN STOCK.

For orders of 1 pieces or less, we will despatch within working days.

For orders of more than 1 pieces we will generally despatch within working days.
