T24-ACM Single Channel Wireless Docking Module

The T24-ACM is a single channel connectivity module offering high precision measurement of a single input. It has a high performance radio/telemetry output when fitted with one of our telemetry acquisition modules.

Usable around the globe on the licence-free 2.4GHz frequency, the T24 range avoids local radio interference to ensure data integrity and security. The system provides exceptional performance in the field with a battery life of up to 5 years, by ‘powering down’ between transmissions or ‘powering off’ completely.

Featuring a compartment for a pair of alkaline ‘D’ cells, the T24-ACM also has a regulator circuitry for an external power supply. The batteries can also be used to provide power in case of external supply failure. For easy wireless sensing, the unit provides connections via the 2 part screw terminals and environmental sealing to IP67.

The T24-ACM high accuracy, low noise measurement electronics deliver high resolution, low drift results which can be user calibrated over 9 points to enable linearization and to deliver results in user definable engineering units. The results can be transmitted at rates of up to 200 per second to other wireless sensing T24 devices such as handheld displays, analogue outputs and base stations etc.

The wireless sensor transmitter is configured and calibrated (either by applying known inputs or by table entry) using free T24 Toolkit software which runs on a PC connected to a T24 base station.

The T24 offers a wireless range of up to 800 m (2,600 ft) in open field site.

For use in any measuring application, from torque to weight, vibration to flow, the T24-ACM offers users a complete solution.

The T24-ACM is a single channel connectivity module offering high precision measurement of a single input. It has a high performance radio/telemetry output when fitted with one of our telemetry acquisition modules.

Usable around the globe on the licence-free 2.4GHz frequency, the T24 range avoids local radio interference to ensure data integrity and security. The system provides exceptional performance in the field with a battery life of up to 5 years, by ‘powering down’ between transmissions or ‘powering off’ completely.

Featuring a compartment for a pair of alkaline ‘D’ cells, the T24-ACM also has a regulator circuitry for an external power supply. The batteries can also be used to provide power in case of external supply failure. For easy wireless sensing, the unit provides connections via the 2 part screw terminals and environmental sealing to IP67.

The T24-ACM high accuracy, low noise measurement electronics deliver high resolution, low drift results which can be user calibrated over 9 points to enable linearization and to deliver results in user definable engineering units. The results can be transmitted at rates of up to 200 per second to other wireless sensing T24 devices such as handheld displays, analogue outputs and base stations etc.

The wireless sensor transmitter is configured and calibrated (either by applying known inputs or by table entry) using free T24 Toolkit software which runs on a PC connected to a T24 base station.

The T24 offers a wireless range of up to 800 m (2,600 ft) in open field site.

For use in any measuring application, from torque to weight, vibration to flow, the T24-ACM offers users a complete solution.

  • Integrated PCB antenna
  • IP67 sealed enclosure
  • Powered by batteries for up to 5 years
  • Regulated external supply
  • Screw terminals for ease of connection
  • Simple configuration and calibration of acquisition module via PC using base station with telemetry toolkit software
  • Wireless sensor transmitter

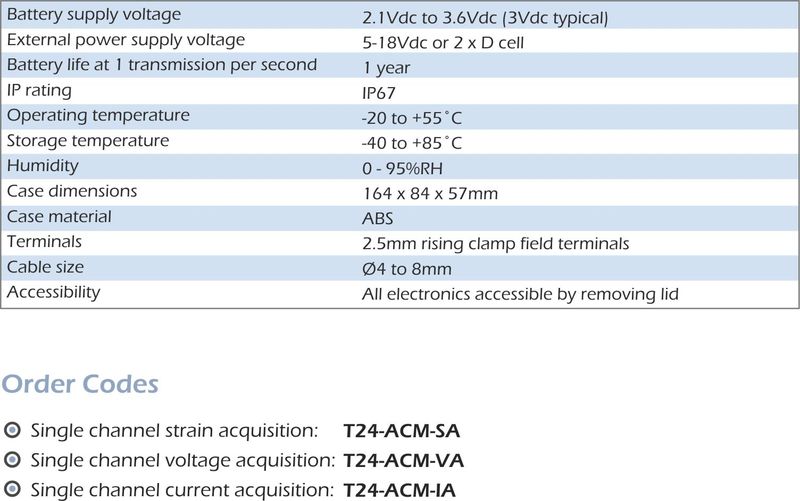

t24-acm specification

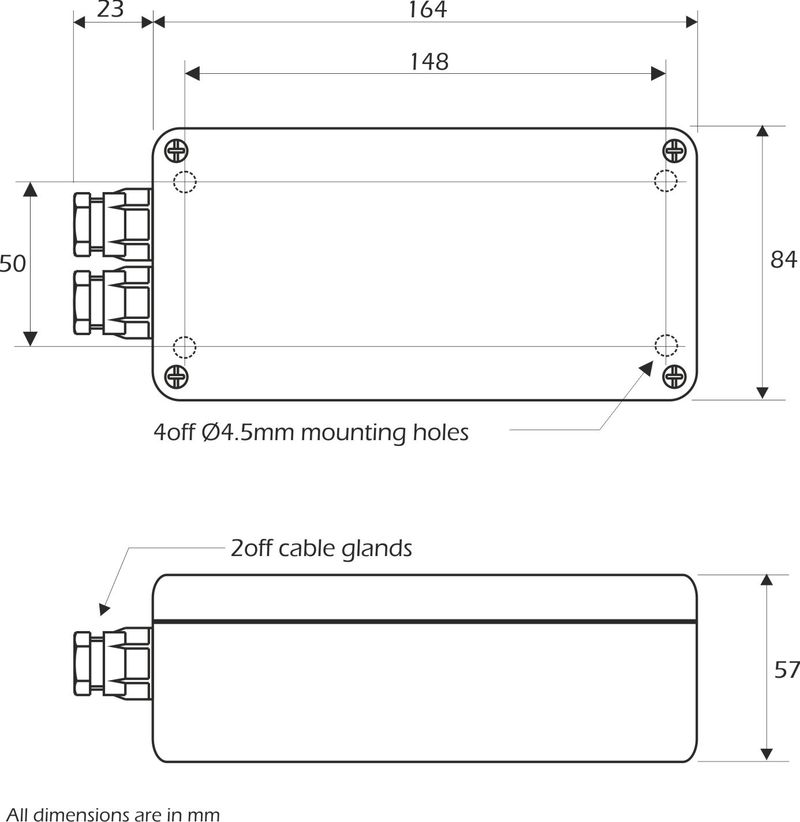

t24-acm dimensions

  • Single channel strain acquisition (order code T24-ACM-SA)
  • Single channel voltage acquisition (order code T24-ACM-VA)
  • Single channel current acquisition (order code T24-ACM-IA)
  • Crane Weighing and Overload Protection
  • Production machining condition monitoring
  • Vessel Weighing
  • Vehicle Weighing

Request a quote for T24-ACM Single Channel Wireless Docking Module

DescriptionPrice Base StationStockQty
T24-ACM with wireless strain gauge acquisition board£436.00 1 in stock
Hover over ADD TO BASKET for DELIVERY times. You can BACK ORDER this product. | YOU MAY PLACE ORDERS FOR MORE THAN WE HAVE IN STOCK.

For orders of 1 pieces or less, we will despatch within 2 working days.

For orders of more than 1 pieces we will generally despatch within 5 working days.
