STA-4 S-Type Tension and Compression Load Cell

The STA-4 series load cell is ideal for measuring both tensile and compressive forces. The standard metric threads at each end of the load cell are designed to accept standard spherical seating rod-end bearings.

The STA-4 is suitable for many applications where a tension and compression load cell is required for high accuracy measurements. Applications such as vessel weighing, material test machines and dynamometers are a few examples. This range of products is ideally suited for many other OEM applications, offering a highly cost effective solution for a wide variety of applications.

The STA-4 series can be supplied on it's own or combined with our extensive range of instrumentation to provide a complete load monitoring system.




  • 50kgs to 5000kgs
  • Alloy steel nickel plated construction
  • Can be supplied complete with mating spherical rod-end bearings
  • Environmentally sealed to IP67

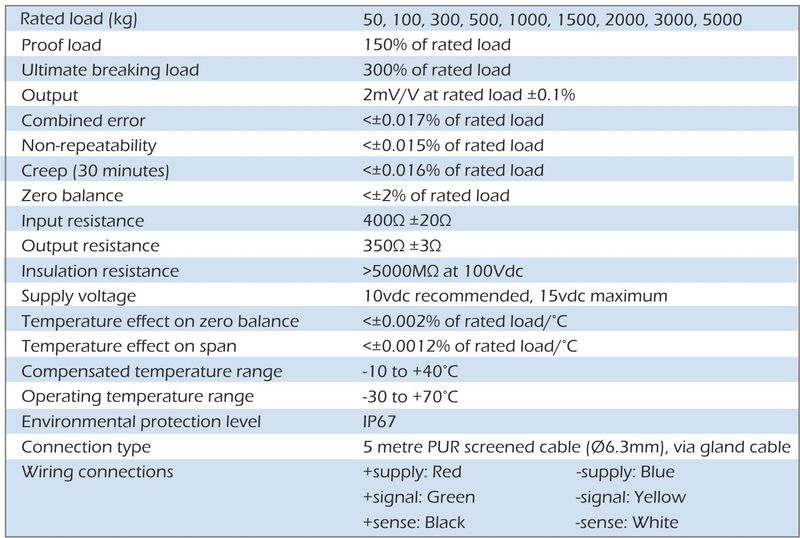

sta-4 load cell specification

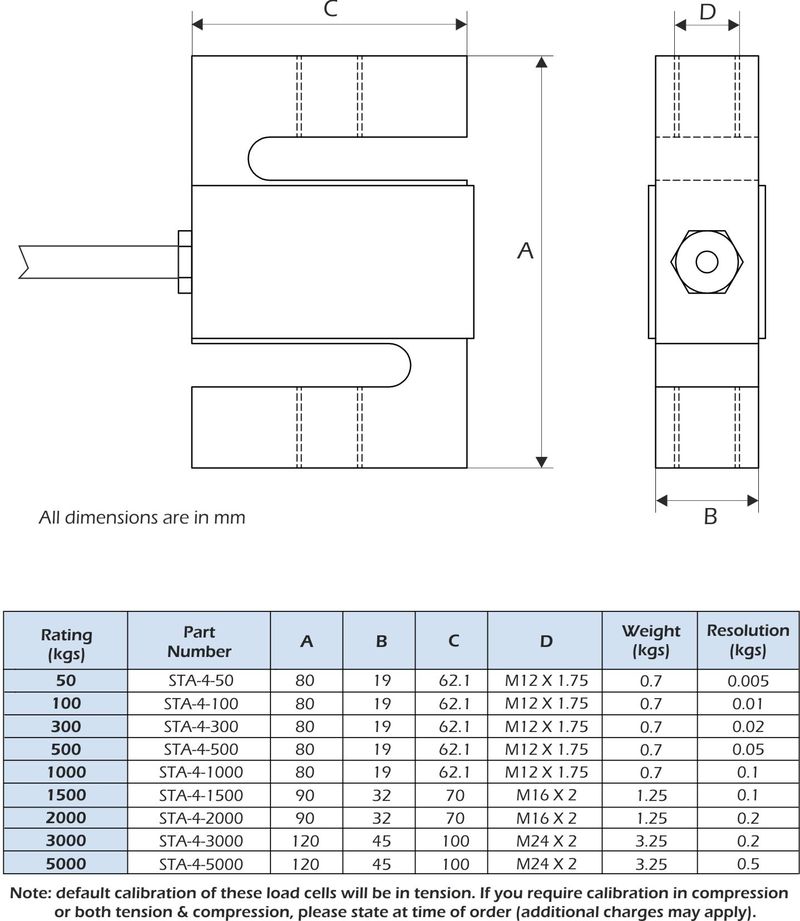

sta-4 load cell dimensions

  • Hanging scales
  • Material test machines
  • Engine/motor dynamometers
  • General force measurement
  • Process weighing

STA-4 ALLOY STEEL S TYPE TENSION/COMPRESSION LOAD CELL

Request a quote for STA-4 S-Type Tension and Compression Load Cell

DescriptionPrice StockQty
50kg STA-4£162.000 in stock
Hover over ADD TO BASKET for DELIVERY times. You can BACK ORDER this product. | YOU MAY PLACE ORDERS FOR MORE THAN WE HAVE IN STOCK.
For orders of 0 pieces or less, we will despatch within 2 working days.
For orders of more than 3 pieces we will generally despatch within 7 working days.
100kg STA-4£162.002 in stock
Hover over ADD TO BASKET for DELIVERY times. You can BACK ORDER this product. | YOU MAY PLACE ORDERS FOR MORE THAN WE HAVE IN STOCK.
For orders of 2 pieces or less, we will despatch within 2 working days.
For orders of more than 5 pieces we will generally despatch within 7 working days.
300kg STA-4£162.006 in stock
Hover over ADD TO BASKET for DELIVERY times. You can BACK ORDER this product. | YOU MAY PLACE ORDERS FOR MORE THAN WE HAVE IN STOCK.
For orders of 6 pieces or less, we will despatch within 2 working days.
For orders of more than 6 pieces we will generally despatch within 7 working days.
500kg STA-4£162.005 in stock
Hover over ADD TO BASKET for DELIVERY times. You can BACK ORDER this product. | YOU MAY PLACE ORDERS FOR MORE THAN WE HAVE IN STOCK.
For orders of 5 pieces or less, we will despatch within 2 working days.
For orders of more than 5 pieces we will generally despatch within 7 working days.
1000kg STA-4£186.006 in stock
Hover over ADD TO BASKET for DELIVERY times. You can BACK ORDER this product. | YOU MAY PLACE ORDERS FOR MORE THAN WE HAVE IN STOCK.
For orders of 6 pieces or less, we will despatch within 2 working days.
For orders of more than 6 pieces we will generally despatch within 7 working days.
1500kg STA-4£186.000 in stock
Hover over ADD TO BASKET for DELIVERY times. You can BACK ORDER this product. | YOU MAY PLACE ORDERS FOR MORE THAN WE HAVE IN STOCK.
For orders of 0 pieces or less, we will despatch within 2 working days.
For orders of more than 0 pieces we will generally despatch within 7 working days.
2000kg STA-4£267.004 in stock
Hover over ADD TO BASKET for DELIVERY times. You can BACK ORDER this product. | YOU MAY PLACE ORDERS FOR MORE THAN WE HAVE IN STOCK.
For orders of 4 pieces or less, we will despatch within 2 working days.
For orders of more than 4 pieces we will generally despatch within 7 working days.
3000kg STA-4£267.005 in stock
Hover over ADD TO BASKET for DELIVERY times. You can BACK ORDER this product. | YOU MAY PLACE ORDERS FOR MORE THAN WE HAVE IN STOCK.
For orders of 5 pieces or less, we will despatch within 2 working days.
For orders of more than 5 pieces we will generally despatch within 7 working days.
5000kg STA-4£267.007 in stock
Hover over ADD TO BASKET for DELIVERY times. You can BACK ORDER this product. | YOU MAY PLACE ORDERS FOR MORE THAN WE HAVE IN STOCK.
For orders of 7 pieces or less, we will despatch within 2 working days.
For orders of more than 7 pieces we will generally despatch within 7 working days.
