LCM3779 Load Pin

The LCM3779 stainless steel load pin has been designed for general use. Suitable for use in a large variety of applications, it is easy to install by replacing an existing load bearing pin to provide real time monitoring of load forces.

Originally manufactured for Sany and Zoomlion (two of the worlds largest engineering, mining and construction machinery manufacturers), this load pin is rated to 80 tonnes, is Ø120 x 235mm and has a Lumberg connector with 10m PUR screened cable. We have 20 available for despatch in two weeks.

On sale at £500 (original selling price £1,431)

  • 4-20mA output
  • Priced at £500
  • Rated to 80 tonnes
  • Replaces existing load pin without any system modifications
  • Robust construction
  • Sealed to IP67
  • Simple to install
  • Stainless steel construction

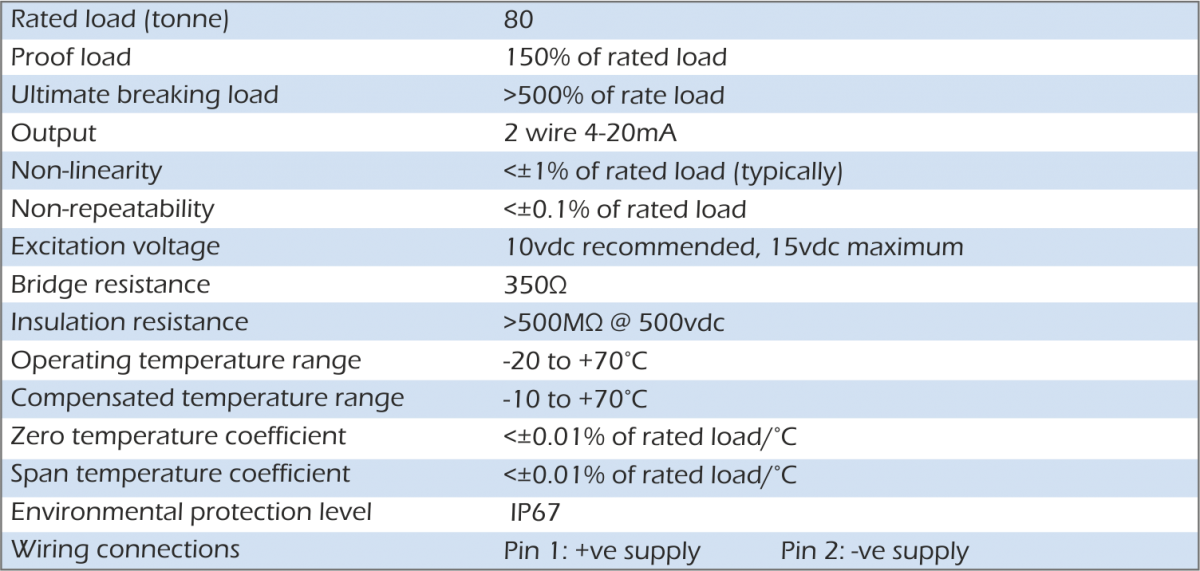

lcm3779 specification

lcm3779 dimensions 0

There are no options available for this product.

  • Winch force monitoring
  • Mooring load measurement
  • Crane overload monitoring
  • Hoist overload protection

Request a quote for LCM3779 Load Pin

DescriptionPrice StockQty
LCM3779 80te Load Pin£500.000 in stock
| YOU MAY PLACE ORDERS FOR MORE THAN WE HAVE IN STOCK.
For orders of 0 pieces or less, we will despatch within working days.
For orders of more than 0 pieces we will generally despatch within working days.
