DCE Stainless Steel Stud Type Tension and Compression Load Cell

The LCM Systems DCE load cell has been developed for applications that require the measurement of tensile and compressive forces, where space is limited. As with most LCM products there are special variants that are available for this product. Popular variants include different thread sizes, integral connectors and high temperature versions.

Typical applications include component testing, weighing systems and general force measurement.

The DCE can be supplied on it's own or integrated with any of the wide range of instrumentation products available from LCM Systems.




  • Different mounting options available

  • Environmentally sealed to IP65

  • Ratings from 100N to 50kN

  • Rationalised output option available

  • Special Sizes and ranges available

  • Stainless steel construction

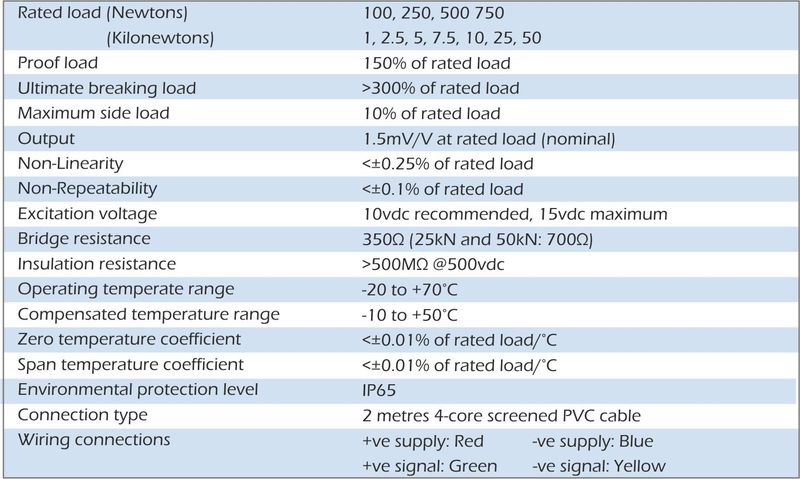

dce specification

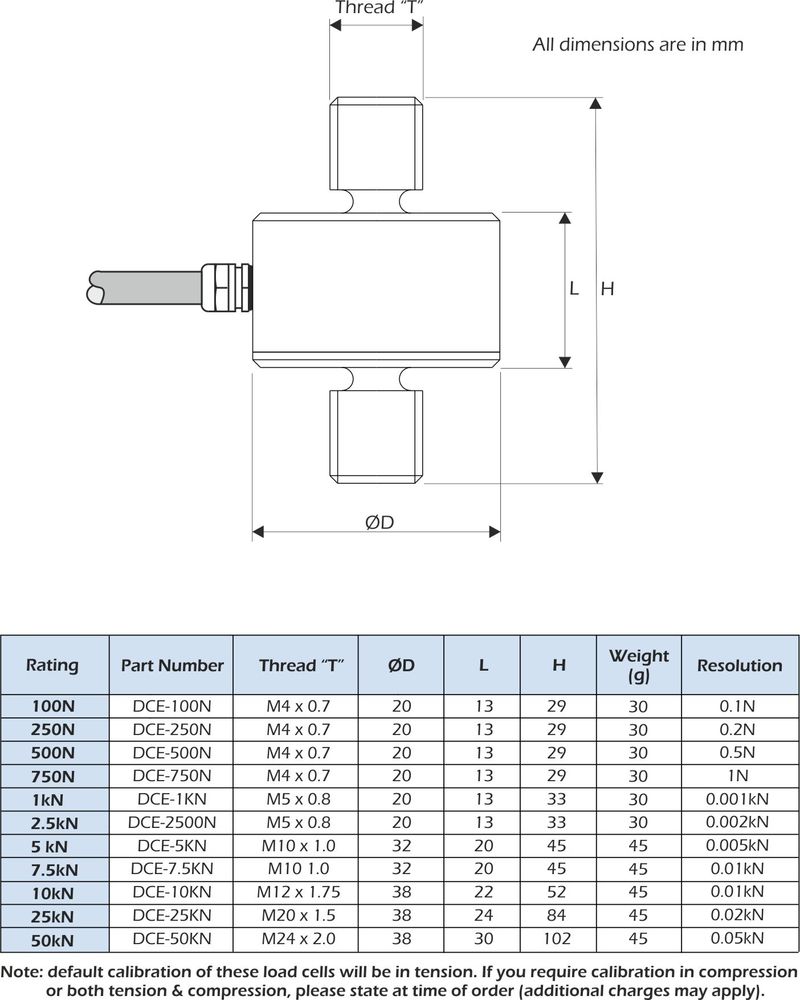

dce load cell dimensions

  • Special ranges and sizes available

  • Rationalised output available

  • Different thread sizes available

  • Integral connector option

  • High temperature variants

  • Different mounting options

  • TEDS option (when used with TR150 handheld display)

  • General Force Measurement

  • Wire Tension Measurement

  • Tensile Testing

This is sample text for the Downloads area. The Downloads below have been added using attributes.

Data Sheet

Instruction Manual

Request a quote for DCE Stainless Steel Stud Type Tension and Compression Load Cell

DescriptionPrice StockQty
100N DCE£309.008 in stock
Hover over ADD TO BASKET for DELIVERY times. You can BACK ORDER this product. | YOU MAY PLACE ORDERS FOR MORE THAN WE HAVE IN STOCK.

For orders of 8 pieces or less, we will despatch within 2 working days.

For orders of more than 8 pieces we will generally despatch within 20 working days.
250N DCE£309.005 in stock
Hover over ADD TO BASKET for DELIVERY times. You can BACK ORDER this product. | YOU MAY PLACE ORDERS FOR MORE THAN WE HAVE IN STOCK.

For orders of 5 pieces or less, we will despatch within 2 working days.

For orders of more than 5 pieces we will generally despatch within 20 working days.
500N DCE£309.009 in stock
Hover over ADD TO BASKET for DELIVERY times. You can BACK ORDER this product. | YOU MAY PLACE ORDERS FOR MORE THAN WE HAVE IN STOCK.

For orders of 9 pieces or less, we will despatch within 2 working days.

For orders of more than 9 pieces we will generally despatch within 20 working days.
750N DCE£309.0010 in stock
Hover over ADD TO BASKET for DELIVERY times. You can BACK ORDER this product. | YOU MAY PLACE ORDERS FOR MORE THAN WE HAVE IN STOCK.

For orders of 10 pieces or less, we will despatch within 2 working days.

For orders of more than 10 pieces we will generally despatch within 20 working days.
1kN DCE£309.006 in stock
Hover over ADD TO BASKET for DELIVERY times. You can BACK ORDER this product. | YOU MAY PLACE ORDERS FOR MORE THAN WE HAVE IN STOCK.

For orders of 6 pieces or less, we will despatch within 2 working days.

For orders of more than 6 pieces we will generally despatch within 20 working days.
2.5kN DCE£309.0010 in stock
Hover over ADD TO BASKET for DELIVERY times. You can BACK ORDER this product. | YOU MAY PLACE ORDERS FOR MORE THAN WE HAVE IN STOCK.

For orders of 10 pieces or less, we will despatch within 2 working days.

For orders of more than 10 pieces we will generally despatch within 20 working days.
5kN DCE£367.009 in stock
Hover over ADD TO BASKET for DELIVERY times. You can BACK ORDER this product. | YOU MAY PLACE ORDERS FOR MORE THAN WE HAVE IN STOCK.

For orders of 9 pieces or less, we will despatch within 2 working days.

For orders of more than 9 pieces we will generally despatch within 20 working days.
7.5kN DCE£367.007 in stock
Hover over ADD TO BASKET for DELIVERY times. You can BACK ORDER this product. | YOU MAY PLACE ORDERS FOR MORE THAN WE HAVE IN STOCK.

For orders of 7 pieces or less, we will despatch within 2 working days.

For orders of more than 7 pieces we will generally despatch within 20 working days.
10kN DCE£451.006 in stock
Hover over ADD TO BASKET for DELIVERY times. You can BACK ORDER this product. | YOU MAY PLACE ORDERS FOR MORE THAN WE HAVE IN STOCK.

For orders of 6 pieces or less, we will despatch within 2 working days.

For orders of more than 6 pieces we will generally despatch within 20 working days.
25kN DCE£464.005 in stock
Hover over ADD TO BASKET for DELIVERY times. You can BACK ORDER this product. | YOU MAY PLACE ORDERS FOR MORE THAN WE HAVE IN STOCK.

For orders of 5 pieces or less, we will despatch within 2 working days.

For orders of more than 5 pieces we will generally despatch within 20 working days.
50kN DCE£477.0011 in stock
Hover over ADD TO BASKET for DELIVERY times. You can BACK ORDER this product. | YOU MAY PLACE ORDERS FOR MORE THAN WE HAVE IN STOCK.

For orders of 11 pieces or less, we will despatch within 2 working days.

For orders of more than 11 pieces we will generally despatch within 20 working days.
