CPA
- Ratings from 2 tonnes to 1000 tonnes
- Stainless steel construction
- Environmentally sealed to IP67
When a load is lifted by a crane, the load is free to tilt and move. It will continue to do so until the centre of gravity is directly under the crane hook. If the centre of gravity of the load is known, the exact angle of tilt can be predicted before the lift. This is critical when planning the lift and working out whether or not the lift will be stable. If the load is unstable because the centre of gravity is not centralised, the integrity of the lift and the safety of nearby personnel is put at risk.
LCM Systems centre of gravity systems both weigh and calculate the centre of gravity of any large structure, including offshore oil rigs, boats, turbines and reactors. A typical system comprises of compression load cells and custom designed software that displays individual load cell readings, the total load and the centre of gravity of the module being weighed. The total number of load cells needed will depend on the number of lifting points and the size of the structure.
Our systems facilitate both safe lifting and transportation, as well as determining the type of crane required and the best position of the lifting points to keep the structure stable during the lift.
Below is a selection of some of our most popular standard load cell and sensor based products used for Centre of Gravity Weighing Systems applications
CPA
CPW
LMP
LPB
LPC
SHK-B
TLL
WLL
Below is a selection of our most popular standard instrumentation products used for Centre of Gravity Weighing Systems applications
Below is a selection of some of our custom design product solutions used for Centre of Gravity Weighing Systems applications
LCM1600
LCM3503
LCM4348
LCM4670
LCM4825
What Centre of Gravity Weighing Systems Applications have LCM Systems already satisfied?
Please review some of the recent news items relating to Centre of Gravity Weighing Systems load cells, load pins and associated instrumentation that we have supplied to our customer base. These will help demonstrate the experience we have in finding solutions for our customers, in a addition to the standard product offering available for this application.
19th Aug 2022

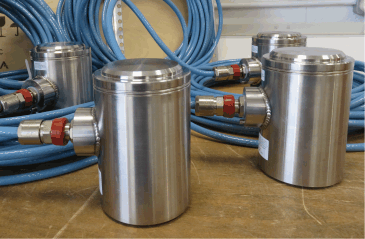

100te Hazardous Area Compression Load Cells
These 100 tonne hazardous area compression load cells, ordered by one of our UK customers, are from our standard CPA range, which now includes ATEX/IECEx explosion proof (Ex d) and intrinsically safe (Ex i) options.
24th Sep 2021

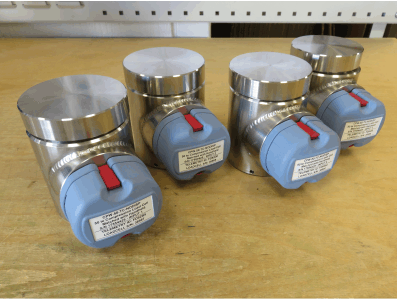

50 Tonne Wireless Compression Load Cells
These 50 tonne wireless compression load cells, ordered by one of our UK customers, are from our standard CPW range.
11th Jun 2021
BBL-1 100kg Beam Load Cells with Weighing Mounts
These BBL-1 beam load cells have been purchased by our distributor in Singapore, along with instrumentation to provide a complete Centre of Gravity system for hopper/tank weighing.
27th Apr 2020
200te Low Profile Compression Load Cells
These four 200 tonne low profile compression load cells have been supplied to one of our distributors and are the first consignment from an order for 10 units.
18th Oct 2019
Wireless Load Links for Dockside Crane
We have recently despatched 26 stainless steel wireless load links to a major European shipyard.
18th Jul 2019
100te Wireless Compression Load Cell
Soon to be completed and despatched to our USA distributor is one of our CPW wireless compression load cells.
22nd Feb 2019
We have recently completed an order for 25 wireless load pins, each rated to 250 tonnes, that will be installed in a crane lifting tackle arrangement to provide load monitoring.
17th Aug 2017
Compression load cells for Centre of Gravity System
Despatched earlier this week were 4 x 20te compression load cells and 4 x 50te compression load cells for a Centre of Gravity system.
9th Mar 2017

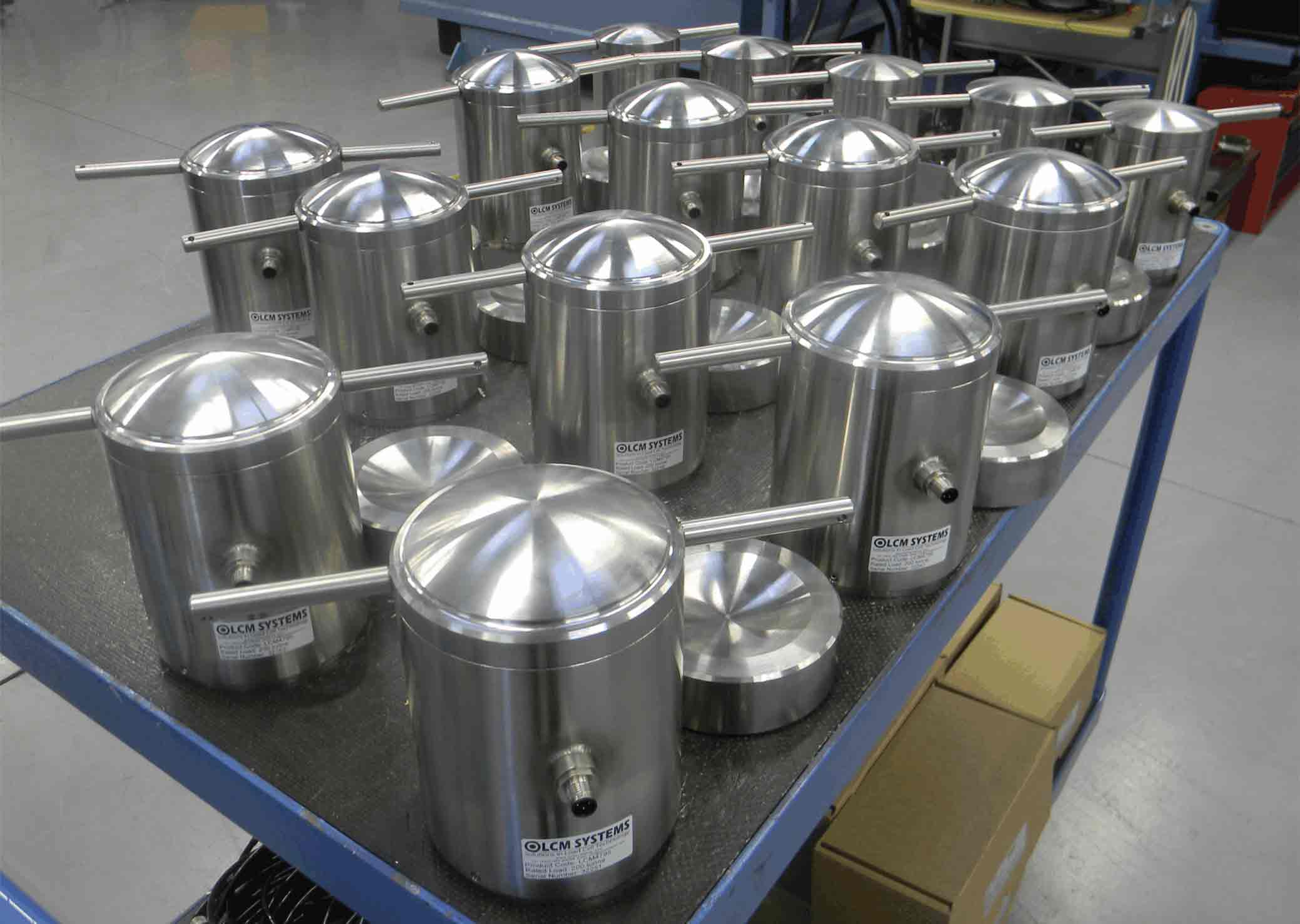

LCM Systems CPA Compression Load Cells Continue to Fly Off the Production Line
Proving to be extremely popular in recent months are our CPA compression load cells, with yet another batch heading off to Sarawak, Malaysia.
22nd Feb 2017

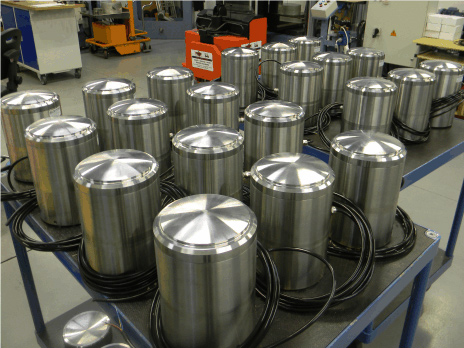

500te Compression Load Cells for Centre of Gravity System
One of our regular OEM customers has ordered 21 x 500 tonne CPA compression load cells, which are now complete and ready for collection.
